Export configuration files

Elements are exported to JSON of the following structure.

We recommend assigning service names to important blocks. Then their values ​​will be inserted into the values field of the object. The structure of the field depends on the block type

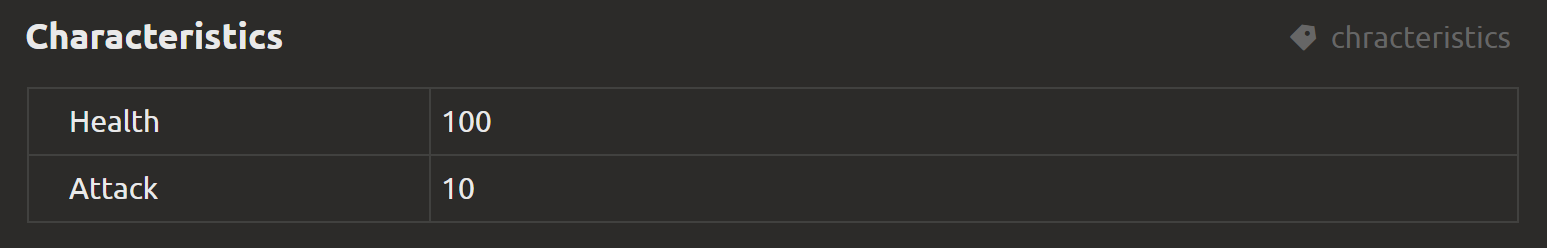

For example, you are creating a description of a character that you want to set two attributes for: health (lives) and attack (attack strength). To do this, create a "Properties table" block with two fields:

Give it the service name chracteristics. Then in values the element will have:

   "values": {
      "characteristics": {
         "health": 100
         "attack": 10
      },
   },

TIP

To assign a service name to a block, click on the three dots on the right side of the block

Please note that the field name you entered was "normalized": uppercase letters were replaced with lowercase, service characters were removed, spaces were replaced with underscores

WARNING

Please note that by default, all fields in the table are not typed, so depending on what is entered in the field, you can get different types of values ​​in JSON. To prevent this, set the desired type in the field settings
